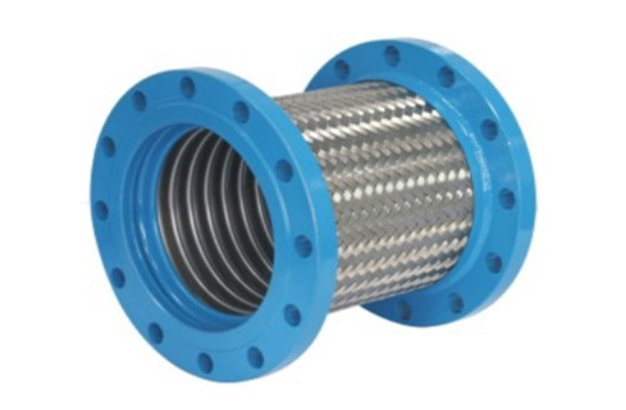

With steel mesh tube
- Model:
- ——
- Size:
- DN15--DN400
- Pressure:
- 0.6MPa,1.0MPa，1.6MPa,2.5MPa,4.0MPa,6.4MPa
- Body Materials:
- ——
- Applicable Medium:
- ——
- Send us Email
Product Introduction
Good value and cost effective are key factors to consider , we as being professional manufacturer of JGD flexible rubber joint,with 30 years' experience and history ,products are adopted by many key projects in china , meanwhile export to USA,SPAIN,ROK,FRANCE,BRAZIL ,UAE,EGYPE etc oversea and regions ,well replialbe quality,reasonable price,strictly first class material,modern assembly line,strictly inspection system make us leading position in the industry,meanwhile ,provide clients most competitive products and service ,technology support . which could remain your project safe and secure .No need to worry about the problems of quality.
Product Features
Easy install,general applicable ,good tightness.
Technical Parameters
| DN(mm) | ID(mm) | Outside diameter(mm) | Min bending radius | Maximum working pressure | |||
| Corrugated hose | With a network set | Static | Dyamic | One network | Two network | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 15 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 15 | 20 |
| 20 | 20 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32 | 40 | 41.6 | 175 | 400 | 4 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3 | 5 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3 | 5 |
| 80 | 79 | 96.3 | 97.9 | 486 | 1030 | 3 | 5 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4 |
| 200 | 176 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4 |
| 250 | 248 | 290 | 294 | 1250 | 2500 | 2.5 | 4 |
| 300 | 298 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.6 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
